Drum Pump 20 Vacuum only

Drum pump air powered 20 cfm vac only-sumps,fluid

Air operated

Drum Pump air powered

Drum pump air powered 20 cfm vacuum only for fluids, coolant, sump oil, bilge, muds and grease. The Spillrite Drum Pump 20 cfm is a vacuum pump that turns your old steel drum into a powerful vacuum. This low cost solution is ideal in factories and workshops or on oil rigs for the rapid recovery of fluids. Fills a 200 litre drum in under 90 seconds. High powered and safe. Powered by 20 cfm of compressed air. These pumps have a silencer fitted which reduces the sound signature considerably. The pumps automatically shut-off when the drum fills up with fluid.

The unit comes with 3 metres of 32mm hose and all attachments for drum.

Spillrite drum pump operation diagram — Spillrite drum pumps — vacuum only, or two-way reversible. Liquid is vacuumed in or pumped out, depending on the model.

20-cfm-drum-pump

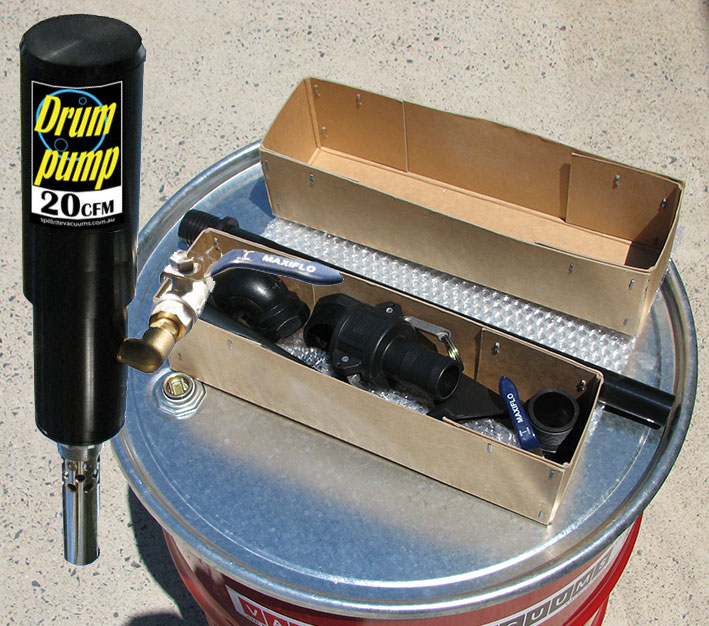

20-cfm-vac-only-on-drum

Drum-Pump-with-arrows

vac-only

Kit includes;

32mm suction hose x 2 metres
32mm plastic rod
32mm crevice tool
50/32 poly reducing bush
32mm male camlock
32mm hosetail
vacuum ball valve with Nitto fitting
pump with silencer fitted
chrome float valve with automatic shutoff
hose clamps
instruction sheet
5 year warranty

The diagram to the left shows how the exhaust is forced downwards out the side vents inside the silencer away from the operator. The vacuum is created inside the pump and then the drum. Due to the unique design when in reverse mode there is no chance of over pressurisation as pressure is released through the throat of the venturi and out the exhaust. Completeley safe and reliable.

Specifications

Model	Drum Pump 20 Vacuum only
SKU	SDP20VO
