Drum Pump 20 Reversible

Drum pump air powered 20 cfm two way-sumps,fluid

Air operated

Drum Pump air powered

Two way drum pump 20 cfm for fluids, coolant, sump oil, bilge, muds and grease. The Spillrite Drum Pump 20 cfm reversible is a two way vacuum pump that turns your old steel drum into a powerful vacuum. This low cost solution is ideal in factories and workshops or on oil rigs for the rapid recovery of fluids. Fills a 200 litre drum in under 90 seconds. High powered and safe. Powered by 20 cfm of compressed air. These pumps have a silencer fitted which reduces the sound signature considerably. The pumps automatically shut-off when the drum fills up with fluid.

Spillrite drum pump operation diagram — Spillrite drum pumps — vacuum only, or two-way reversible. Liquid is vacuumed in or pumped out, depending on the model.

The unit comes with 3 metres of 32mm hose and all attachments for drum.

Worldwide shipping

Destination	Shipping
USA, UK, EU	$149
Asia, India	$129
Middle East	$199

20-cfm-drum-pump

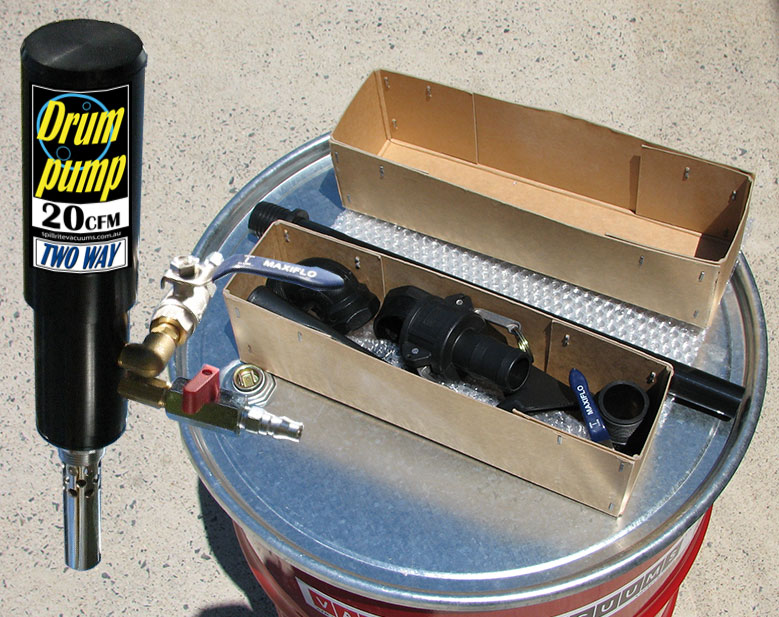

Drum-Pump-20-cfm-with-attachements

two-way-reverse-drum-pump-sticker

Kit includes;

32mm suction hose x 2 metres
32mm plastic rod
32mm crevice tool
50/32 poly reducing bush
32mm male camlock
32mm hosetail
vacuum ball valve with Nitto fitting
reverse valve with Nitto fitting
pump with silencer fitted
chrome float valve with automatic shutoff
internal pump out pipe
hose clamps
instruction sheet
5 year warranty

The diagram to the left shows how the exhaust is forced downwards out the side vents inside the silencer away from the operator. The vacuum is created inside the pump and then the drum. Due to the unique design when in reverse mode there is no chance of over pressurisation as pressure is released through the throat of the venturi and out the exhaust. Completeley safe and reliable.

Specifications

Model	Drum Pump 20 Reversible
SKU	SDP20R
